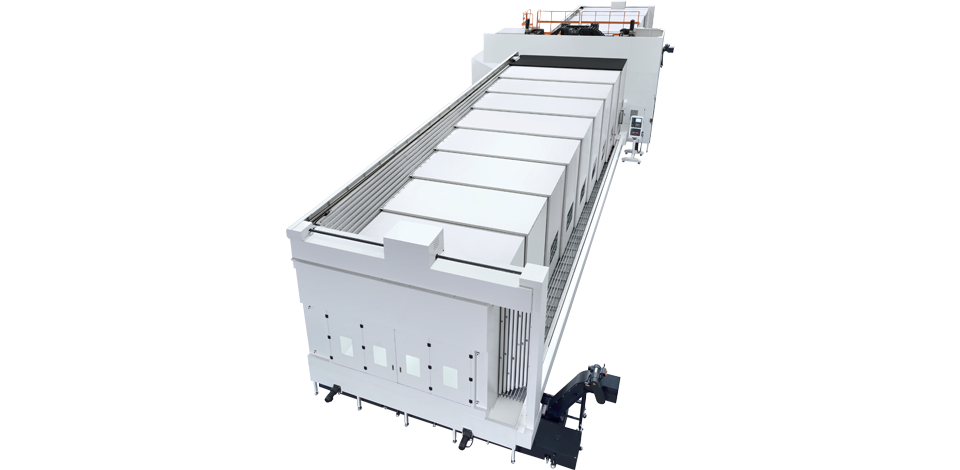

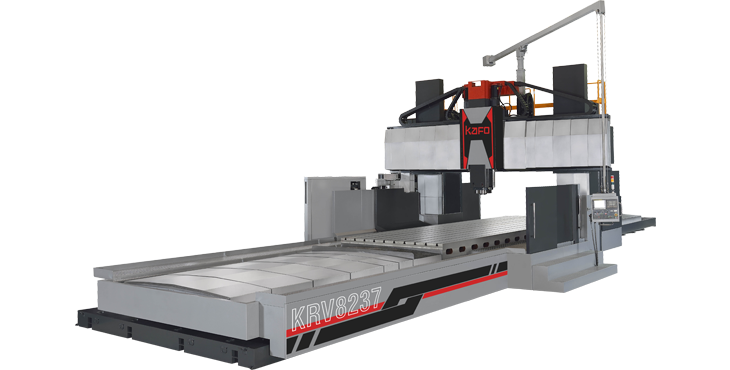

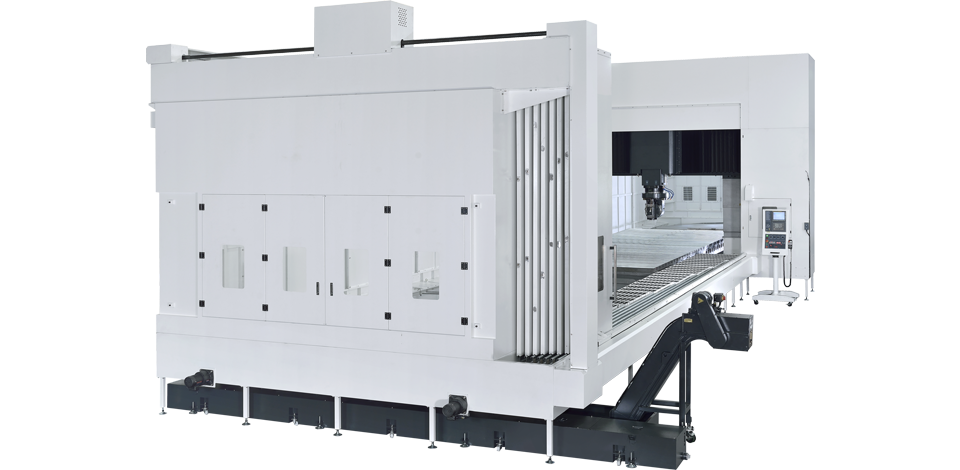

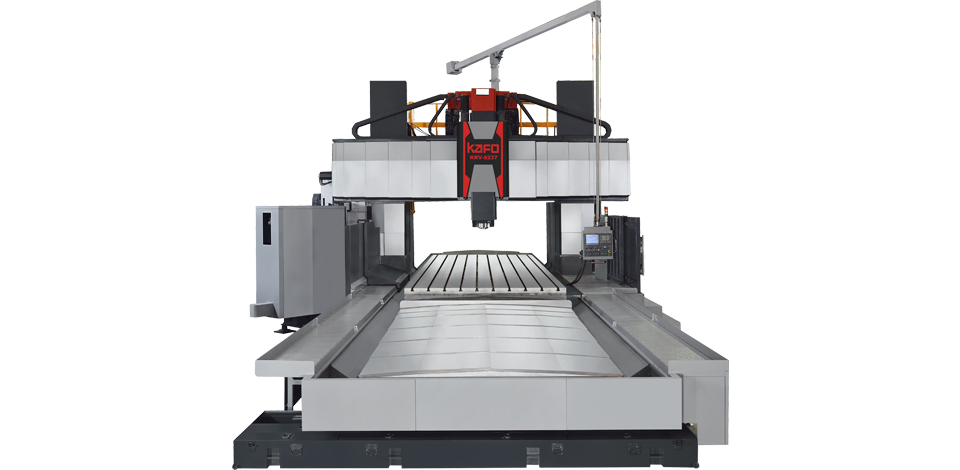

KRV Series

Moving Cross Rail Double-Column Machining Center

KRV series of moving cross rail five-face machining center series, combine W axis with the advanced design of high-rigidity moving rail structure, providing you with a large travel of full automatic multi-faceted processing with strong cutting capacity. The series model has a large travelonW-axis with 1000/1700 mm stroke and Z-axis with 900/1100 mm for your option. Equipped with automatic vertical-horizontal tool changer, automatic vertical-horizontal attaching head changer, which are able to be carried with various types of automatic additional head (90 degree milling head, universal head, extension head, speed-up extension head). Angle head has 5° indexing division with high precision as standard, and 1/2.5° indexing division or CTS function are available. Attaching head spindle speed up to 4500rpm,which is the highest in the field, vertical and horizontal head changer and multi-head storage module can be selected per your demands to save space and meet with the greatest satisfaction. X/Y-axis ball screw with the hollow cooling design, which can reduce the temperature rise as well as thermal deformation,and improve the positioning as well as repeatability accuracy. Having exceptional characterisitcs that many other the same level machine or being a optional item, suitable for the demand of large castings, structural parts, semiconductor cavity equipment , aerospace transportation parts, energy industry and other industrial processing, easily meeting various cutting demand at the present and in the future.

• X, Y, Z, and W axes adopt high precision linear guideway.
• W-axis with travel 1000mm, optional for 1700mm.
• Vertical and horizontal head changer and multi-head storage module can be selected per your demands to save the space to reach your maximum satisfaction.
• Cantilever operation box system with counter weight balance can be adjusted according to the demand, operating characteristics and movement range are in line with ergonomic design.
• Over 4 meters model, X-axis ball screw uses a special support to reduce ptoticamount of movement and vibration of the ballscrew, to improve the feed speed and positioning accuracy.
