Vertical Machining Center

CV-12A

Vertical Machining Center

CV-12A

Vertical Machining Center

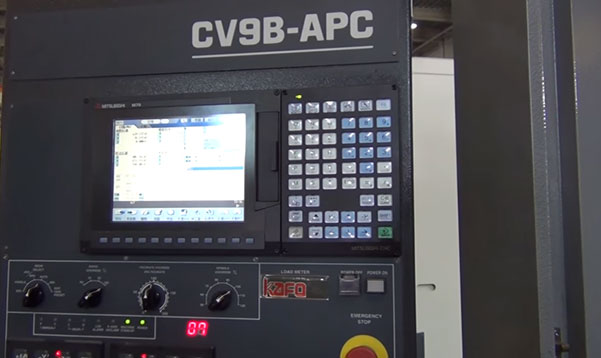

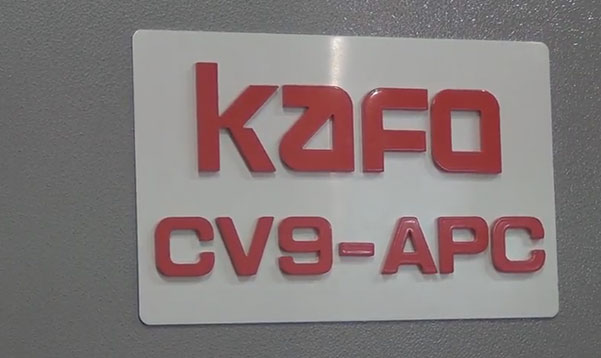

CV9-APC (雙盤交換工作台)

CV/CVM SERIES

Vertical Machining Center

Optimized C-type structure of the proportion of gold design, machine rigidity and stability of good. Three-axis use the ball-type linear guideway. Achieving a perfect balance in the perspectives of promotion of precision and high rigidiy, the product is designed for the industry with high efficiency processing need. On the aspect of cutting chip with high efficiency, the performance is near perfect , the ultimate tool to enhance production efficiency and profit cration for investors. Mainly used in general precision machinery and 3C electronic parts, and automobile and locomotive industries, processing mold industry, aerospace, medical equipment industryand so on.

  • Brand-new enchanced design and analysis with five casting structure.
  • High cutting efficiency and processing stability.
  • Able to choose three-axis screw hollow oil cooling system.

SPECIFICATION

Model Travel (X / Y / Z) Table dimension Guide way (X/Y/Z) Max. loading capacity Spindle speed Rapid speed (X / Y / Z) Tool shank type Tool magazine capacity
  mm mm mm kg rpm m / min type pc

CV-7A

CVM-7A

760 × 520 × 480CV-7A 860 × 520CV-7A Roller-Type Linear Guide WayCV-7A 300CV-7A Direct-Driven 10000CV-7A 48 / 48 / 48CV-7A BT40 / CAT40CV-7A 24CV-7A

CV-7B

CVM-7B

760 × 520 × 480CV-7B 860 × 520CV-7B Ball-Type Linear Guide WayCV-7B 300CV-7B Belt Head 8000CV-7B 36 / 36 / 36CV-7B BT40 / CAT40CV-7B 24CV-7B

CV-9A

CVM-9A

900 × 600 × 600CV-9A 1000 × 600CV-9A Roller-Type Linear Guide WayCV-9A 650CV-9A Direct-Driven 10000CV-9A 48 / 48 / 48CV-9A BT40 / CAT40CV-9A 24CV-9A

CV-9B

CVM-9B

900 × 600 × 600CV-9B 1000 × 600CV-9B Roller-Type Linear Guide WayCV-9B 650CV-9B Belt Head 8000CV-9B 36 / 36 / 36CV-9B BT40 / CAT40CV-9B 24CV-9B

CV-11A

CVM-11A

1100 × 600 × 600CV-11A 1200 × 600CV-11A Roller-Type Linear Guide WayCV-11A 800CV-11A Direct-Driven 10000CV-11A 48 / 48 / 48CV-11A BT40 / CAT40CV-11A 24CV-11A

CV-11B

CVM-11B

1100 × 600 × 600CV-11B 1200 × 600CV-11B Roller-Type Linear Guide WayCV-11B 800CV-11B Belt Head 8000CV-11B 36 / 36 / 36CV-11B BT40 / CAT40CV-11B 24CV-11B

CV-12A

CVM-12A

1270 × 650 × 650CV-12A 1350 × 650CV-12A Roller-Type Linear Guide WayCV-12A 1000CV-12A Direct-Driven 10000CV-12A 48 / 48 / 48CV-12A BT40 / CAT40CV-12A 24CV-12A

CV-12B

CVM-12B

1270 × 650 × 650CV-12B 1350 × 650CV-12B Roller-Type Linear Guide WayCV-12B 1000CV-12B Belt Head 8000CV-12B 36 / 36 / 36CV-12B BT40 / CAT40CV-12B 24CV-12B

CV-14A

CV-14AH

1400 × 700 × 700CV-14A 1550 × 700CV-14A Roller-Type Linear Guide WayCV-14A 1000CV-14A Direct-Driven 10000CV-14A 40/40/36CV-14A BT40 / CAT40CV-14A 24CV-14A

CV-14AH

CVM-14AH

1400 × 700 × 700CV-14AH 1550 × 700CV-14AH Roller-Type Linear Guide WayCV-14AH 1000CV-14AH Direct-Driven 10000CV-14AH 40/40/24CV-14AH BT50 / CAT50CV-14AH 24CV-14AH

CV-14B

CVM-14B

1400 × 700 × 700CV-14B 1550 × 700CV-14B Roller-Type Linear Guide WayCV-14B 1000CV-14B Belt Head 8000CV-14B 36 / 36 / 30CV-14B BT40 / CAT40CV-14B 24CV-14B

CV-14BH

CVM-14BH

1400 × 700 × 700CV-14BH 1550 × 700CV-14BH Roller-Type Linear Guide WayCV-14BH 1000CV-14BH Direct-Driven 10000CV-14BH 36 / 36 / 24CV-14BH BT50 / CAT50CV-14BH 24CV-14BH

CV-16A

CVM-16A

1600 × 700 × 700CV-16A 1750 × 700CV-16A Roller-Type Linear Guide WayCV-16A 1000CV-16A Direct-Driven 10000CV-16A 40 / 40 / 36CV-16A BT40 / CAT40CV-16A 24CV-16A

CV-16AH

CVM-16AH

1600 × 700 × 700CV-16AH 1750 × 700CV-16AH Roller-Type Linear Guide WayCV-16AH 1000CV-16AH Belt Head 8000CV-16AH 40 / 40 / 24CV-16AH BT50 / CAT50CV-16AH 24CV-16AH

CV-16B

CVM-16B

1600 × 700 × 700CV-16B 1750 × 700CV-16B Roller-Type Linear Guide WayCV-16B 1000CV-16B Belt Head 8000CV-16B 36 / 36 / 30CV-16B BT40 / CAT40CV-16B 24CV-16B

CV-16BH

CVM-16BH

1600 × 700 × 700CV-16BH 1750 × 700CV-16BH Roller-Type Linear Guide WayCV-16BH 1000CV-16BH Direct-Driven 10000CV-16BH 36 / 36 / 24CV-16BH BT50 / CAT50CV-16BH 24CV-16BH

CV-168

CVM-168

1600 × 850 × 800CV-168 1700 × 850CV-168 Roller-Type Linear Guide WayCV-168 1500CV-168 Gear Head 6000CV-168 30 / 30 / 30CV-168 BT50 / CAT50CV-168 24CV-168

CV-188

CVM-188

1800 × 850 × 800CV-188 1900 × 850CV-188 Roller-Type Linear Guide WayCV-188 1500CV-188 Gear Head 6000CV-188 30 / 24 / 30CV-188 BT50 / CAT50CV-188 24CV-188

CV-9A APC

900 × 600 × 600CV-9A APC 850 × 500 ( × 2)CV-9A APC Roller-Type Linear Guide WayCV-9A APC 300 ( × 2)CV-9A APC Direct-Driven 10000CV-9A APC 48 / 48 / 48CV-9A APC BT40 / CAT40CV-9A APC 24CV-9A APC

CV-9B APC

900 × 600 × 600CV-9B APC 850 × 500 ( × 2)CV-9B APC Roller-Type Linear Guide WayCV-9B APC 300 ( × 2)CV-9B APC Belt Head 8000CV-9B APC 36 / 36 / 36CV-9B APC BT40 / CAT40CV-9B APC 24CV-9B APC
